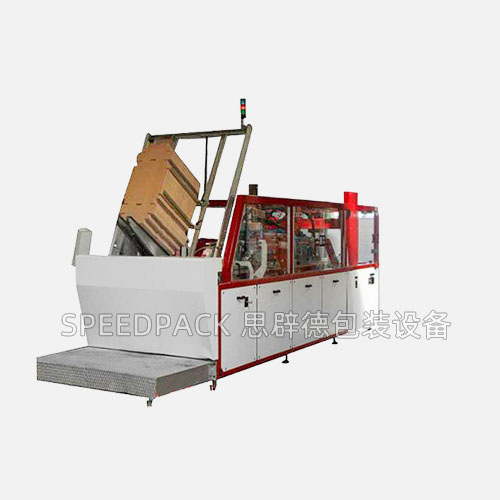

Automatic Flat Box Erector and Case Packer

Supports Customization：Customization for special specifications is supported.
Industries Served：Industries such as food & pharmaceuticals, household goods, industrial products, textiles, and cosmetics
Product Overview：Sheet-Style Carton Wrapping & Case Packing Machine The machine is equipped with an imported PLC (Programmable Logic Controller) and an HMI (Human-Machine Interface) touchscreen, enabling integrated electro-pneumatic-mechanical control. It offers a selectable manual or automatic operating mode for flexible production needs. The entire unit is precision-engineered with a simple yet robust structure. All internal components are fabricated from high-quality materials, ensuring durability, reliability, and an aesthetically pleasing appearance. A dedicated motor-driven cam mechanism is used for vacuum pickup of carton blanks, guaranteeing smooth, consistent sheet feeding—eliminating issues such as missed picks, double feeds, or jamming. An integrated blank detection sensor automatically halts the box-picking operation if no carton blank is present, preventing dry runs and potential damage. During operation, the system continuously monitors for material shortages or abnormal conditions. In the event of any fault, the machine triggers an audible/visual alarm and stops automatically to ensure safety and prevent downtime escalation. For the case packing process, a premium-brand servo motor is employed, delivering stable, precise, and highly reliable loading performance.

+86 17701725961

Product Configuration

Main Components	Supplier / Brand
Main Motor	SEW-Eurodrive (Germany)
Servo System	Panasonic (Japan)
Auxiliary Motors	CPG (Taiwan)
Emergency Stop Switches	Shinden (Taiwan)
PLC	Omron (Japan)
HMI Touchscreen	Kunlun Tongtai (China)
Control Switches	CHINT (China)
AC Contactors	Schneider Electric
Cylinders & Solenoid Valves	SMC (Japan)
Bearings	NSK (Japan)

Model Specifications

Specification / Parameter	Value
Wrapping Speed	8–12 cases/minute
Film Size (L × W)	L 500–1100 mm × W 400–800 mm
Carton Height (After Forming)	110–400 mm
Power Supply	220/380 V, 50 Hz
Power Consumption	3250 W
Required Air Pressure	6 kg/cm²
Machine Dimensions (L × W × H)	4650 × 2000 × 2500 mm

Support & Services

Quality Assurance, Efficient Collaboration

Speed specializes in the R&D of end-of-line automated packaging systems. We hold multiple invention patents in packaging equipment and employ a team of senior electromechanical engineers and designers to ensure product quality and project efficiency.

Dedicated Shipment & Rigorous Testing

We deliver on schedule as agreed. Every machine undergoes strict factory testing before shipment. Equipment is wrapped in stretch film and secured in wooden crates or with wooden bracing for full protection against moisture and damage during transit—shipped as a complete unit.

Premium After-Sales Service

Prior to equipment commissioning, we provide free on-site training for your installation and management teams at the project location. Training covers equipment installation, system components, operation procedures, and maintenance protocols.
